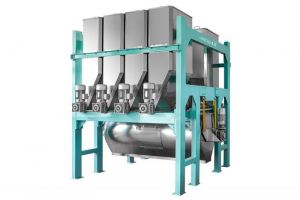

LTPLC Series Full automatic micro material proportioning scale

【LTPLC Series Full automatic micro material proportioning scale】Detail

Advantage introduction

1、The raw material bin is designed from the hang system, it’s easy to install and maintenance .

2、It could complete all the handle as the setting by the controller full-automatically .

3、It could avoid the wrong cases in  small weight happening to make sure the best quality .

4、Special raw material will need special screw, so convey effect is very good no matter how the raw material is .

5、It is equipped with self-cleaning tumble type scale , so there’s no resign and leak every time completed

6、Upper the raw material there’s a tube to avoid the dust when complete the working period . After that , the material will bank the bin .


LongTai LTPLC series fully automatic trace material batching scale is widely used in feed, food, pharmaceutical, chemical, food and other fields of industrial . the powder, grain will get full automatic weight and convey . The equipment could complete automatic batching to the raw material including powder, pellets, block, bulk material continuous . And the process includes that trace material automatic weighing, automatic dosing and automatic transmission control. It’s performance is stable and reliable, intelligent precision, has greatly improved the efficiency of industrial production of batching system, and completely eliminate trace material artificial weighing ingredients and feeding the possibility of error rate. We accept customized according to customer demand just like bunker, tilting hopper scale and conveying equipment and different specifications of the bunker, tilting hopper scale and transportation equipment .we also developed the number of the levels of ingredients single scale, double scale, scale system, to meet the needs of different customers.


Technical parameters ,


model

LTPLC-50

LTPLC-100

LTPLC-200

LTPLC-300


weight range

≤50kg

≤100kg

≤200kg

≤300kg


Working tolerance

±15g

±30g

±60g

±100g


Working speed

30kg/min

60kg/min

120kg/min

180kg/min


Class of precision

C3


The configuration of the single bin


≤12bin,  0.4m3/bincould customized for customers




The configuration of the double bin


24bin,  0.4m3/bincould customized for customers




The configuration of the several bin


could customized for customers


The voltage of the output

AC380V


The frequency of the inlet

50Hz


The control system inlet voltage

AC220V (or ) AC110V


The frequency of the inlet

50Hz


The power of the screw


Three-phase 0.75kW~3kW


The power of the conveyor


Three-phase 0.75kW~3kW


The air pressure

≥0.6Mpa


Notice


The density is based on 600kg/m
