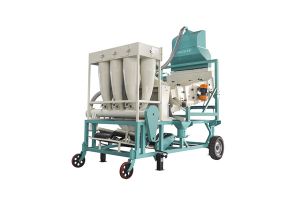

TQLZa Series movable circle shaking sieve

【TQLZa Series movable circle shaking sieve】Detail

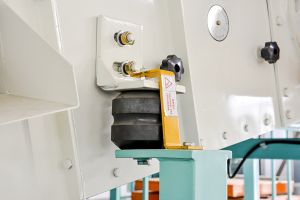

TQLZ series circular shaking sieve usually used for grain pre-cleaning or separating from the different size or waste.The wear parts of the machine including shake motor and damping rubber spring, so could promise the low noise, stable working, high capacity and super working performance. the screen angle and amplitude is adjustable .

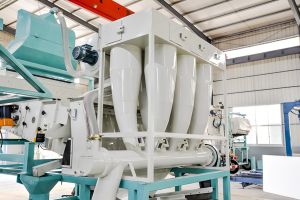

The machine is equipped with cyclone to clean the dust and husk things .

Main technical parameters

parameters

model

max capacity



(t/h)

Screen gradien

Total motor

kw

Amplitudemm

Screen       size

cm

Dimension(length*width*height)

mm

preclean

clean

preclean

clean

TQLZa100×150

10-15

10

8-12

6

2.75

4.5-5.5

100×150

3000×1850×3500

TQLZa100×200

15-20

16

8-12

6

2.99

4.5-5.5

100×200

3750×1850×3500

TQLZa150×200

30-40

24

8-12

6

5.25

4.5-5.5

150×200

3750×2500×3650

TQLZa180×200

50-60

32

8-12

6

5.25

4.5-5.5

180×200

3750×2800×3850

TQLZa200×200

50-80

38

8-12

6

7.35

4.5-5.5

200×200

3750×3000×3850
